In the field of materials science, silicon nitride ceramics have attracted much attention due to their excellent comprehensive properties. In particular, their excellent mechanical properties and high-temperature insulation properties make this material play an important role in many high-end applications, including aerospace, semiconductor industry, and various equipment operating in high-temperature environments. The following will explore in depth the good mechanical properties of silicon nitride ceramic substrates and their insulation properties at high temperatures, and how these properties meet the needs of modern industry and technology.
Basic properties of silicon nitride ceramics.
Silicon nitride (Si3N4) ceramic is a high-performance ceramic whose molecular structure is composed of silicon (Si) and nitrogen (N) atoms combined in the form of covalent bonds. This material has a series of unique physical and chemical properties, such as high strength, high hardness, low thermal expansion coefficient, excellent wear resistance and corrosion resistance. Among them, the most eye-catching is its high temperature stability and insulation properties.
Physical properties of silicon nitride ceramics.
Silicon nitride is a covalent compound, so the molecules are fused to each other with extremely strong covalent bonds, so it has high strength and melting point. Silicon nitride ceramic is a high-temperature insoluble material with no melting point and strong resistance to high-temperature stress relaxation. There is no adhesive reaction and the softening point of calcined silicon nitride is above 1800°C.
Chemical Properties of Silicon Nitride Ceramics
Silicon nitride has excellent organic properties and can resist corrosion by all strong oxidants except hydrochloric acid and sodium hydroxide solutions below 25%. Its oxidation resistance reaches 1400°C, and after recovery It can be used in the atmosphere up to 1870°C, and it is not wet to metal materials (especially AL liquid), especially non-metallic materials.
The importance of high temperature insulation properties
For many industrial applications, the insulating properties of materials are indispensable. Especially in high-temperature environments, maintaining the electrical insulation of materials is key to ensuring normal operation of equipment and personnel safety. Silicon nitride ceramics can maintain stable electrical insulation properties at temperatures up to 1000°C, making them ideal for high-temperature applications.
Mechanical properties and application scenarios
In addition to high-temperature insulation properties, silicon nitride ceramics also have good mechanical properties. For example, its bending strength and fracture toughness are better than those of common engineering materials, which enables silicon nitride ceramics to withstand greater mechanical loads and impacts. Therefore, it is often used to make bearings, seals, turbine blades and other components that need to operate in high temperature and high pressure environments.

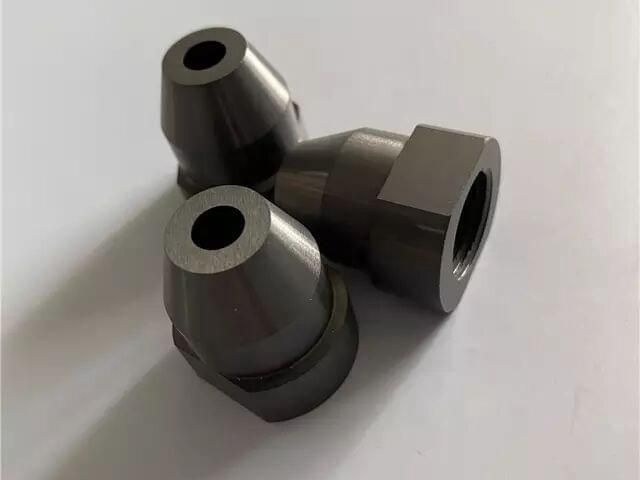

Silicon nitride ceramic sealings
Advances in preparation technology
With the development of material science and technology, the preparation technology of silicon nitride ceramics is also constantly improving. Through various advanced preparation methods, such as reaction sintering, hot pressing sintering, etc., silicon nitride ceramic products with higher performance and better consistency can be obtained. The improvement of these technologies not only improves the performance of the material, but also reduces the production cost, further broadening the application field of silicon nitride ceramics.
Applications in the fields of environment and energy
Silicon nitride ceramics also show great potential in the fields of environmental protection and energy conversion. For example, in high-temperature exhaust gas treatment, solar collectors, etc., its excellent high-temperature resistance and insulation properties can effectively improve the overall performance and efficiency of the system. In addition, the chemical stability of silicon nitride ceramics enables it to withstand most corrosive chemicals, providing a reliable option for handling hazardous waste.
In conclusion
Silicon nitride ceramics are a type of material with the best comprehensive performance in the structural ceramic family. They have excellent properties such as strong hardness, high strength, high temperature resistance, wear resistance, erosion resistance, self-lubrication, and good fracture toughness. They are considered to be one of the high-temperature structural ceramic materials with the most promising development and application prospects. Therefore, silicon nitride ceramics are widely used in machinery, electronics, medical treatment, metallurgy and other fields.
